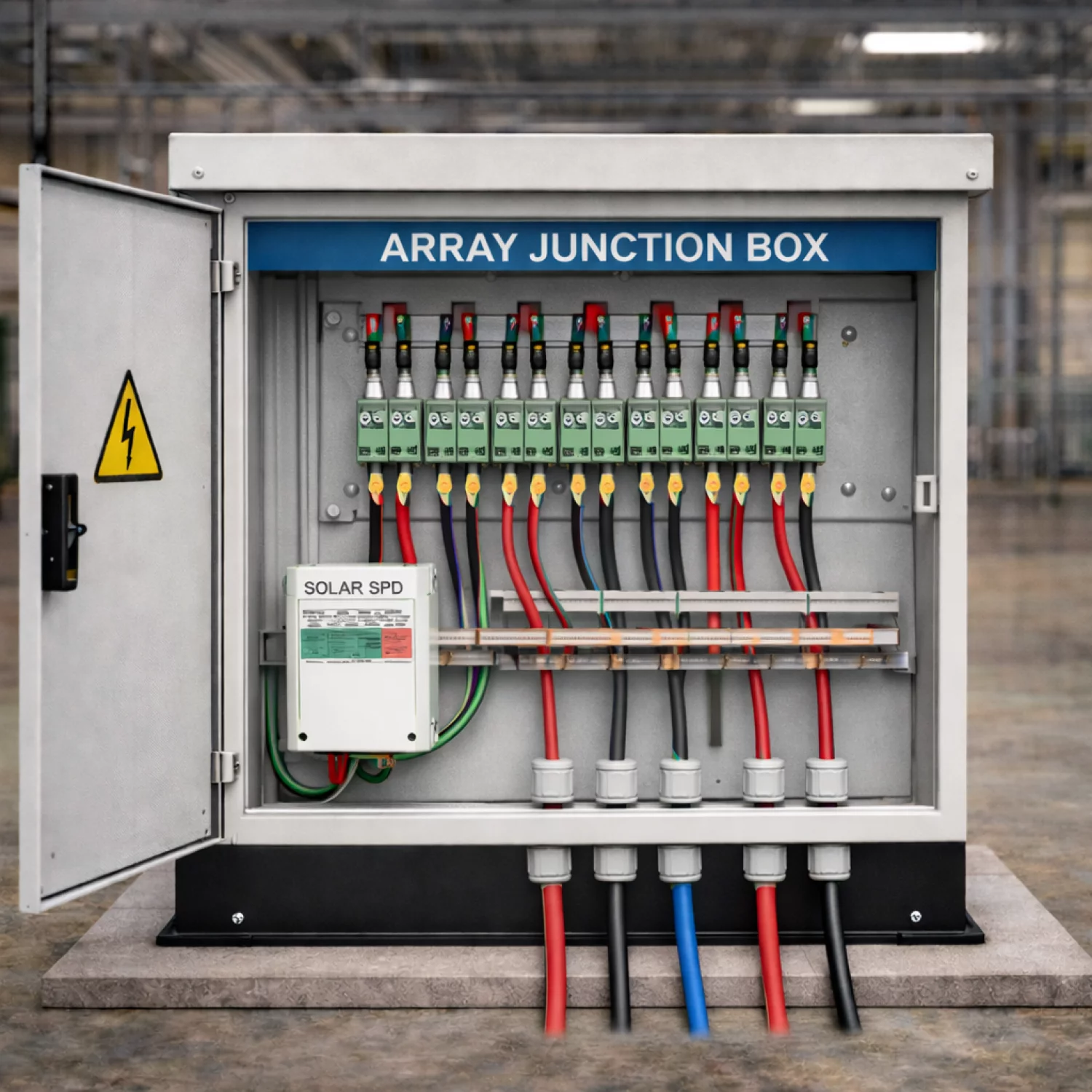

Solar Array Junction Box (AJB)

On the DC side, most faults don’t happen at the module. They show up where strings are joined and routed forward. Loose connections, reverse current, or missing protection create problems that are not visible until output drops. That’s where a Solar Array Junction Box (AJB) becomes critical.

We manufacture Solar Array Junction Box (AJB) in Ahmedabad for solar plants where multiple module strings need to be combined and protected before reaching the inverter. This box handles incoming DC strings, groups them, and provides a single controlled output with proper safety in place.

Each Solar Array Junction Box (AJB) is designed based on number of strings, current rating, and system voltage. Some projects have small string counts, while others include high-capacity arrays. We plan fuse protection, busbar arrangement, and cable entry based on actual field conditions, not a fixed design.

Then there’s the matter of DC safety. Reverse current and surge conditions are common risks. We include string-level protection and surge protection devices so faults are contained at the right point. Internal wiring is kept clear and structured so maintenance teams can trace circuits without confusion.

Outdoor use brings another set of challenges. Dust, moisture, and temperature variation affect performance if enclosure quality is weak. We use proper sealing, gland arrangements, and enclosure design to handle site conditions without frequent issues.

Heat buildup is also considered. Multiple strings combined in one box can raise internal temperature. We maintain spacing and select components that can handle continuous DC load without stress.

Our manufacturing setup in Ahmedabad handles fabrication and assembly in-house. This keeps consistency in build and avoids variation in quality.

Basic testing is done before dispatch. We check string connections, protection setup, and enclosure quality. Boxes are built following IS and IEC practices so they can be installed without rework.

We supply Solar Array Junction Box (AJB) in Ahmedabad, across Gujarat, and to solar projects across India where DC combining needs to be handled properly.

If you have a solar requirement, share string details and layout. We will review and build a Solar Array Junction Box (AJB) that fits the system and works reliably in actual site conditions.
