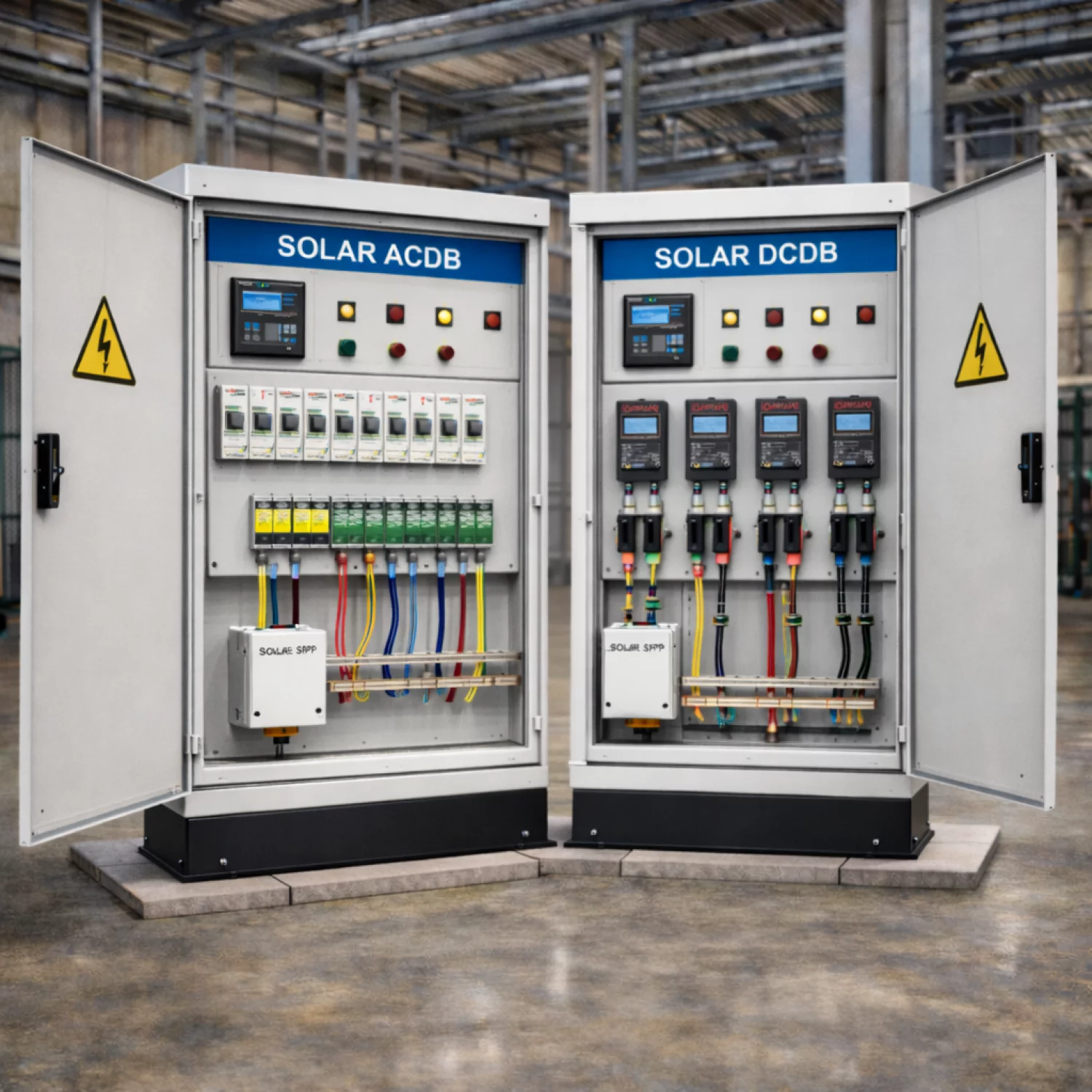

Solar ACDB Panel


AC side issues in solar plants don’t come from generation, they come from how output is handled after the inverter. Loose protection, poor distribution, or unclear isolation points create problems during maintenance and fault conditions. That’s where a Solar ACDB Panel becomes necessary. It manages inverter output in a controlled way before it connects to the main system.

We manufacture Solar ACDB Panel in Ahmedabad for rooftop and ground-mounted solar projects where multiple inverters need proper AC distribution and protection. These panels collect AC output from inverters and route it safely towards the main LT panel or grid connection point.

Each Solar ACDB Panel is designed based on inverter capacity, number of inputs, and system layout. Some installations have a few inverters, while others include multiple high-capacity units. We plan incoming feeders, outgoing connections, and protection devices based on actual configuration. Circuit breakers and surge protection devices are selected to match system voltage and load.

Then there’s the matter of safety during operation and maintenance. AC side isolation is important when technicians are working on the system. We include proper switching and clear segregation so sections can be handled without risk. Internal wiring is kept structured so fault tracing doesn’t become difficult later.

Heat and load handling are also considered. Continuous output from solar systems during peak hours can stress components if not planned properly. We maintain spacing and ventilation to support long operation without overheating.

Our manufacturing unit in Ahmedabad handles fabrication, assembly, and wiring in-house. That keeps consistency across all panels and avoids mismatch between design and execution.

Testing is done before dispatch. We check feeder connections, protection operation, and overall functionality. Panels are built following IS and IEC practices so they can be installed without rework.

We supply Solar ACDB Panel in Ahmedabad, across Gujarat, and to solar projects across India where stable AC distribution is required.

If you have a solar project, share inverter details and system layout. We will review and build a Solar ACDB Panel that fits the application and runs without unnecessary complications.
